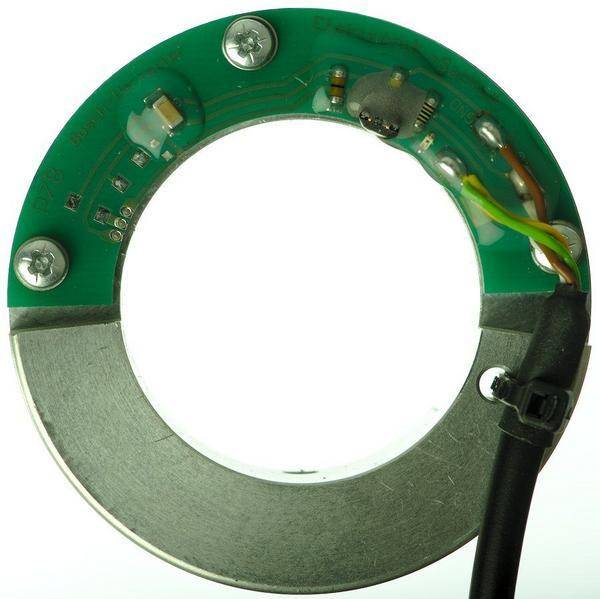

Digital ignition ZDG3 for Steyr-Puch 650TR. Replacement for breaker points and advance unit JF2. Sensor (hall effect) mounting in the points distributor housing. The weights are replaced by this kit and can be removed. Ignition box included.
The dual-channel box controls two 12V single output coils or two 12V twin output ignition coil (2Ω-5Ω), e.g. Dyna-Mini-2. We recommend this version for dual plugged heads.

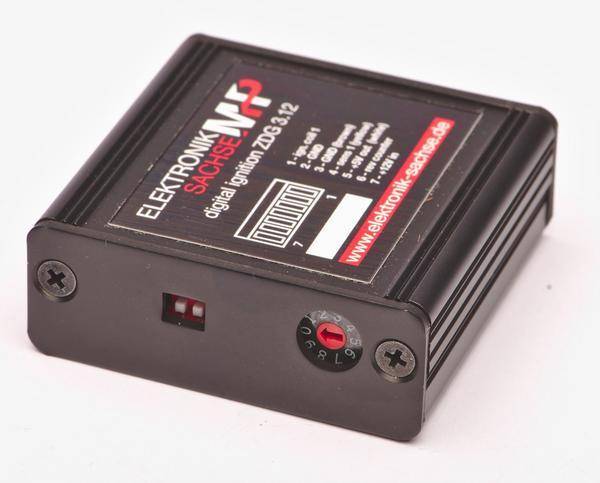

Ignition box dimensions
Width: 70 mm
Height: 20 mm
Length: 85 mm
Length including connections: 90 mm
Advantages
- No distributor required / No breaker points needed, replaced by hall effect sensors
- Free from wear
- Prolonged life
- Simple installation
- Every part is available as spare part
- Microprocessor controlled ignition curve
Installation Manual
See tab “Installation” further up on this page, next to “Description”.
