Digital ignition ZDG 3.12 (12V) for Honda CB125K, CB125J, CB125S, CB125/160/175/200 Twin, replacement for breaker points and advance unit. Well suited for highly tuned bikes, competition or racing.
This is the ZDG 3.12 box which has the following features that the (smaller) ZDG 3.10 lacks:
9 ignition curves to choose from (selectable via hex switch)
Output for electronic tachometer
Adjustable rev limiter (2 values)
The default rev limiter settings are 10000 rpm and 12500 rpm. If higher rpms than 12500 rpm are desired, please use the comment field during checkout and provide your custom (two) values which we'll program according to your request.
Ignition box dimensions
Width: 42 mm
Height: 20 mm
Length: 55 mm
Length including connections: 55 mm
Advantages

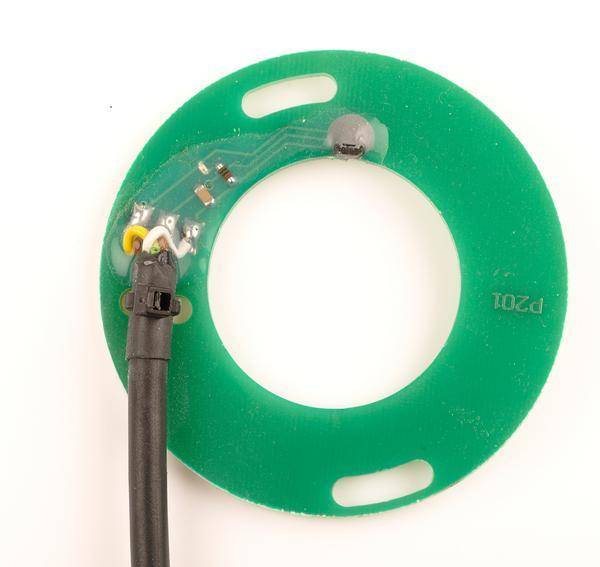

No distributor required / No breaker points needed, replaced by hall effect sensors
Free from wear
Prolonged life
Simple installation
Every part is available as spare part
Microprocessor controlled ignition curve
Installation Manual
See tab “Installation” further up on this page, next to “Description”.
