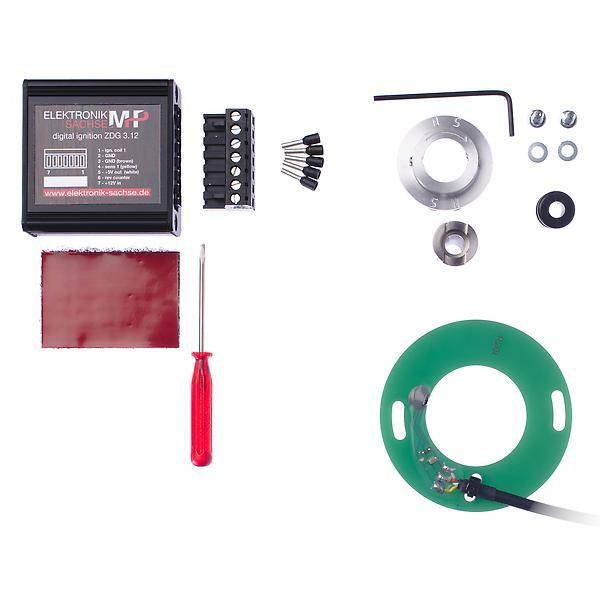

Digital ignition for Aermacchi single cylinder. Replacement for breaker points and advance unit. There are 9 ignition curves, selectable by a rotary switch at the box. Futhermore, a selectable rpm limit and a rpm output for an electronic rpm counter are available. 12V version. Ideal for competition.

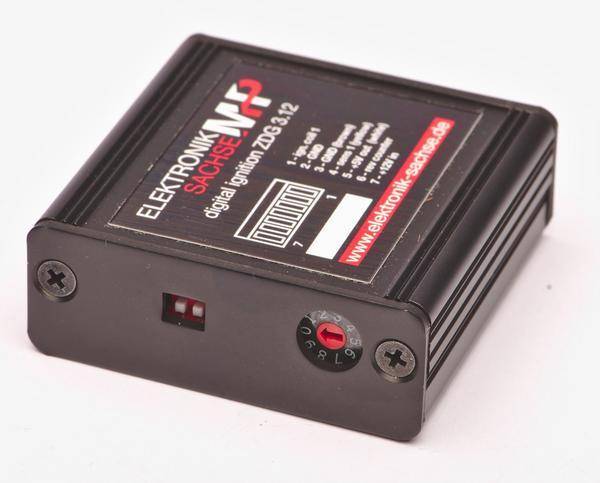

Ignition box dimensions
Width: 55 mm
Height: 20 mm
Length: 55 mm
Length including connections: 55 mm
Advantages

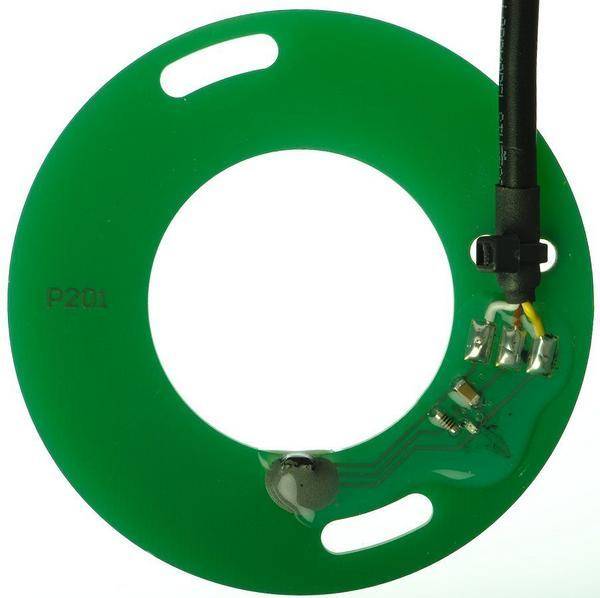

No distributor required / No breaker points needed, replaced by hall effect sensors
Free from wear
Prolonged life
Simple installation
Every part is available as spare part
Microprocessor controlled ignition curve
Installation Manual
See tab “Installation” further up on this page, next to “Description”.
